Importing the USA’s Airspaces¶

We import data on the USA’s airspaces from a dataset provided by the FAA. This data already contains all the information we need so it requires very little processing.

Setup¶

import requests
from datetime import datetime, timezone
import time
import numpy as np
import pandas as pd
import descartes, geopandas
from shapely.geometry import LineString, Point, Polygon, MultiPolygon, base
from shapely.ops import transform

import math
import matplotlib.pyplot as plt

import cartopy.crs as ccrs
import cartopy.geodesic as cgeo
import cartopy.io.img_tiles as cimgt
import cartopy.feature as cfeature

Initial Data Processing¶

We download the file using a built-in geopandas method, and do some basic processing to get the geometry and vertical limits into formats that the rest of the processing code can work with.

url = "https://opendata.arcgis.com/datasets/c6a62360338e408cb1512366ad61559e_0.geojson"
gdf = geopandas.read_file(url)

NOTE: as it turns out the z-coordinate is completely unused so vertical_limits is unnecessary. I’m leaving it here in case it comes in handy later.

def vertical_limits(geom):
    def _limits_from_coords(c):
        l = list(map(lambda t: t[2], list(c)))
        return (min(l), max(l))

    if isinstance(geom, Polygon):
        return _limits_from_coords(geom.exterior.coords)
    elif isinstance(geom, MultiPolygon):
        lims = list(map(list, zip(*[ _limits_from_coords(g.exterior.coords) for g in geom ])))
        return (min(lims[0]), max(lims[1]))
    else:
        raise NotImplementedError

def process_geometry(shape):
    shape2 = transform(lambda x, y, z: tuple(filter(None, [x, y])), shape).buffer(0)
    if isinstance(shape2, Polygon):
        return MultiPolygon([shape2])
    elif isinstance(shape2, MultiPolygon):
        return shape2
    else:
        raise NotImplementedError

def process_vertical_limits(upper, upper_units, lower, lower_units):
    if upper_units == "FT":
        upper_ft = int(upper)
    elif upper_units == "FL":
        upper_ft = int(upper) * 100
    else:
        upper_ft = 1000000 # Assume 'None' is unrestricted, this should be large enough
    if upper_ft < 0:
        upper_ft = 1000000 # See above

    if lower_units == "FT":
        lower_ft = int(lower)
    elif lower_units == "FL":
        lower_ft = int(lower) * 100
    else:
        lower_ft = 0 # Assume 'None' is unrestricted, return ground level
    return (upper_ft, lower_ft)

gdf['geometry'] = gdf.geometry.apply(process_geometry)
gdf['upper_limit'], gdf['lower_limit'] = zip(*gdf.apply(lambda row: process_vertical_limits(row.UPPER_VAL, row.UPPER_UOM, row.LOWER_VAL, row.LOWER_UOM), axis=1))
gdf['name'] = gdf['NAME']
del gdf['NAME']
gdf

	OBJECTID	GLOBAL_ID	IDENT	ICAO_ID	UPPER_DESC	UPPER_VAL	UPPER_UOM	UPPER_CODE	LOWER_DESC	LOWER_VAL	...	AK_LOW	US_LOW	US_AREA	PACIFIC	Shape__Area	Shape__Length	geometry	upper_limit	lower_limit	name
0	1	2AC361E6-08A9-49E8-8B3B-AA68EE41363C	CZYZ	CZYZ	TI	17999	FT	MSL	None	4500	...	0	1	0	0	1.655436	7.583659	MULTIPOLYGON (((-81.20495 44.50579, -81.20936 ...	17999	4500	TORONTO, ON CAE 8
1	2	3B2EA57E-2618-47A3-BC52-DF07A2DB6F97	CZWG	CZWG	TI	17999	FT	MSL	None	12501	...	0	1	0	0	4.581230	8.016952	MULTIPOLYGON (((-95.96780 49.79961, -95.96764 ...	17999	12501	KENORA, ON CAE
2	3	E229E560-CA7D-45A7-AFD6-9FF3E01113C6	CZVR	CZVR	TI	12500	FT	MSL	None	2000	...	1	1	0	0	0.074797	1.798322	MULTIPOLYGON (((-122.55477 49.10081, -122.5547...	12500	2000	PITT MEADOWS CAE
3	4	7099FA1B-406E-4896-BA81-F74E30AECFCE	CZVR	CZVR	TI	6500	FT	MSL	None	3200	...	1	0	0	0	0.016077	0.598732	MULTIPOLYGON (((-123.50967 49.37969, -123.5091...	6500	3200	VANCOUVER, BC TCA
4	5	7FD391DB-1145-44CF-A32F-64B192FA284E	CZYZ	CZYZ	TI	3300	FT	MSL	None	0	...	0	1	0	0	0.030340	0.630070	MULTIPOLYGON (((-76.71478 44.22523, -76.71477 ...	3300	0	KINGSTON, ON CTLZ
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
5794	5795	C471BE9C-6BBD-4DB6-8809-490E740EA021	NOW	KNOW	TI	2500	FT	MSL	None	0	...	1	1	0	1	0.002927	0.197640	MULTIPOLYGON (((-123.41226 48.11634, -123.4149...	2500	0	PORT ANGELES CGAS CLASS E2
5795	5796	4DCDB3FC-9149-4A58-B040-7F668E971B5D	NOW	KNOW	AA	-9998	None	None	None	0	...	1	1	0	1	0.008285	0.475549	MULTIPOLYGON (((-123.39775 48.11881, -123.3968...	1000000	0	PORT ANGELES CGAS CLASS E4
5796	5797	D76D7CA4-4715-4991-AD59-DF1A7003A3EA	None	None	AA	-9998	None	None	None	700	...	0	1	0	1	0.049059	0.895362	MULTIPOLYGON (((-124.52673 42.55188, -124.4869...	1000000	700	GOLD BEACH CLASS E5
5797	5798	F9D11D29-3001-4E66-A8C5-62BF1232E64B	None	None	AA	-9998	None	None	None	1200	...	0	1	0	1	0.262581	1.855594	MULTIPOLYGON (((-124.42158 42.16528, -124.4240...	1000000	1200	GOLD BEACH CLASS E5
5798	5799	ECDCC2C9-DC4D-41A9-B17B-81C0D52FE798	None	None	AA	-9998	None	None	None	700	...	1	1	0	1	0.034226	0.855681	MULTIPOLYGON (((-123.52795 48.22726, -123.2646...	1000000	700	PORT ANGELES CGAS CLASS E5

5799 rows × 42 columns

Visualising Airspaces¶

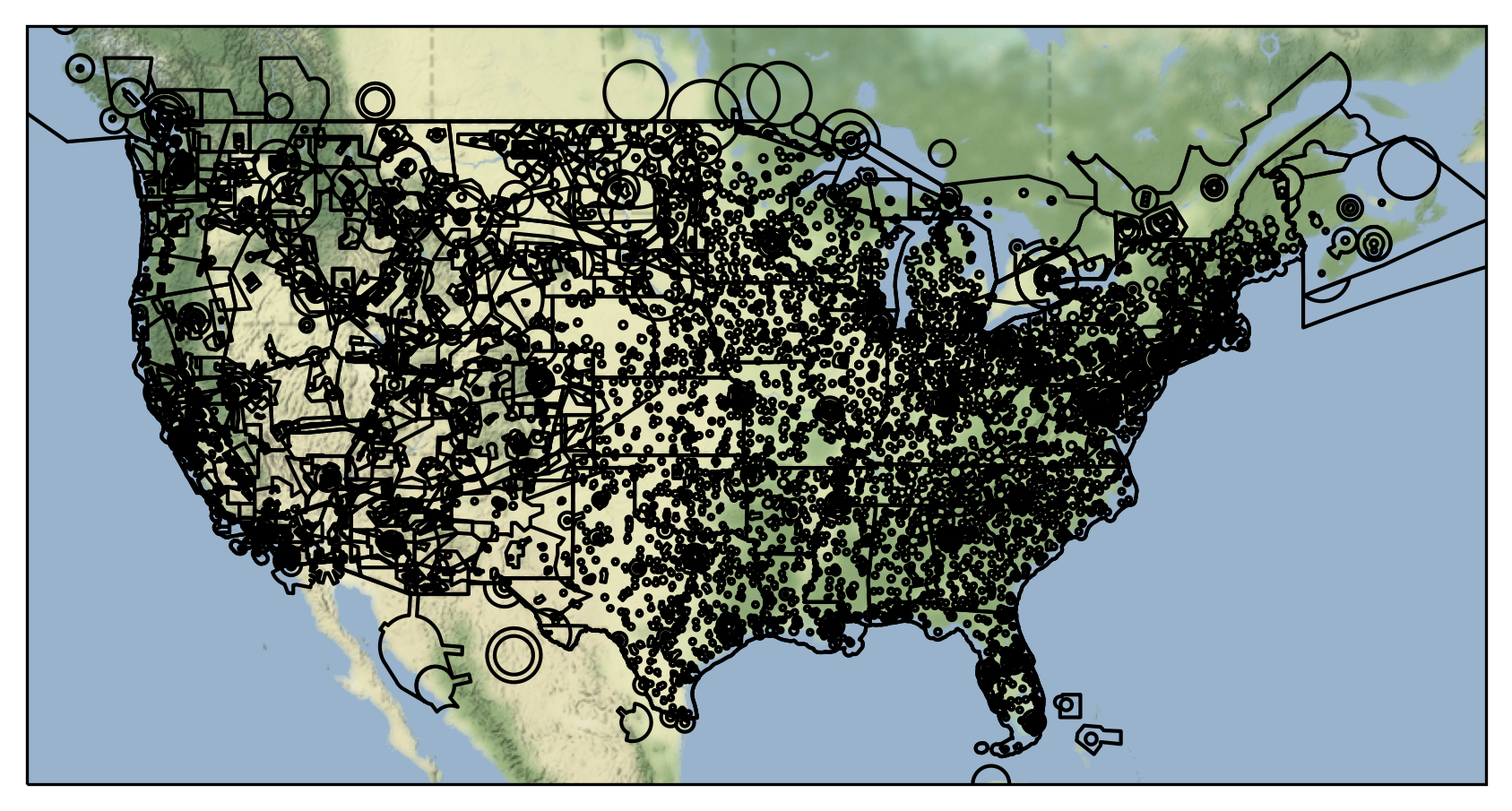

We can now plot the airspaces on a map.

fig = plt.figure(dpi=300, figsize=(7,7))

imagery = cimgt.Stamen(style="terrain-background")
ax = plt.axes(projection=imagery.crs)

minlon = -130
maxlon = -58
minlat = 23
maxlat = 46

ax.set_extent((minlon, maxlon, minlat, maxlat))
ax.add_image(imagery, 4)

ax.add_geometries(gdf.geometry, crs=ccrs.PlateCarree(), facecolor="none", edgecolor="black")

ax.set_aspect('auto')

plt.show()

Export Data¶

We save the data to a file.

from flight_processing import DataConfig

config = DataConfig.known_dataset("usa")
out_location = config.dataset_location
out_location

'/mnt/cold_data/josh/processing/regions_usa_wkt.json'

gdf_out = gdf.copy()

gdf_out['wkt'] = gdf_out.geometry.apply(lambda g: g.wkt)

gdf_out.to_file(out_location, driver="GeoJSON")

del gdf_out
