Importing the UK’s Airspaces¶
We import data on the UK’s ATC regions from the UK NATS and extract the useful information including the shape of each region.
Setup¶
Modify the URL below to point to the latest version of the UK’s AIP.
dataset_location = 'https://www.aurora.nats.co.uk/htmlAIP/Publications/2020-06-18-AIRAC/html/eAIP/EG-ENR-2.1-en-GB.html#ENR-2.1'
import requests
from datetime import datetime, timezone
import time
import numpy as np
import pandas as pd
import descartes, geopandas
import cartopy
from shapely.geometry import LineString, Point, Polygon, MultiPolygon, base
import pyproj
from shapely.ops import transform, unary_union
import re
import math
import matplotlib.pyplot as plt
from rtree import index # requires spatialindex_devel
import cartopy.crs as ccrs
import cartopy.geodesic as cgeo
import cartopy.io.img_tiles as cimgt
import cartopy.feature as cfeature
from traffic.data import opensky
from traffic.core import Airspace
from traffic.core.airspace import ExtrudedPolygon
import networkx as nx
import holoviews as hv
import hvplot.networkx as hvnx
namestring = r"^(?P<name>.+ )(?P<lateral_limits>Same extent as .+|( ?-?\d{6}(N|S) \d{7}(E|W)( \(.*\))?| ?thence (anti-)?clockwise by the arc of a circle radius \d+(.\d+)? NM centred on -?\d{6}(N|S) \d{7}(E|W) to)+( but excluding .*)?) ?(Upper limit: (?P<upper_limit>FL\d+|\d+ FT (ALT|SFC))) ?(Lower limit: (?P<lower_limit>FL\d+|\d+ FT (ALT|SFC)|SFC)) ?(Class: (?P<class>[A-G]))(?P<second> ?(Upper limit: (?P<upper_limit_2>FL\d+|\d+ FT (ALT|SFC))) ?(Lower limit: (?P<lower_limit_2>FL\d+|\d+ FT (ALT|SFC)|SFC)) ?(Class: (?P<class_2>[A-G])))?$"
callsignstring = r"^((?P<callsign>[A-Z ]+) )?((?P<language>English)?( )?)(?!English)(?P<hours>.*)$"
freqstring = r"^(?P<frequency>\d{3}\.\d{3})( (?P<purpose>.*))?$"
lateralstring = r"((?P<edge1>Same extent as .+)| ?-?(?P<point>(?P<point_lat>\d{6})(?P<point_ns>(N|S)) (?P<point_long>\d{7})(?P<point_ew>(E|W)))| ?(?P<circle>thence (?P<circle_anti>(anti-)?)clockwise by the arc of a circle radius (?P<circle_radius>\d+(.\d+)?) NM centred on -?(?P<circle_lat>\d{6})(?P<circle_ns>(N|S)) (?P<circle_long>\d{7})(?P<circle_ew>(E|W)) to ?-?((?P<circle_lat2>\d{6})(?P<circle_ns2>(N|S)) (?P<circle_long2>\d{7})(?P<circle_ew2>(E|W))))|(?P<edge2> but excluding the .*))"
verticalstring = r"^((?P<fl>FL(?P<fl_num>\d+))|(?P<ft>(?P<ft_num>\d+) FT (?P<ft_alt_sfc>ALT|SFC))|(?P<sfc>SFC))$"
expression_namestring = re.compile(namestring)
expression_callsignstring = re.compile(callsignstring)
expression_freqstring = re.compile(freqstring)
expression_lateral = re.compile(lateralstring)
expression_vertical = re.compile(verticalstring)
Initial Data Processing¶
We parse the HTML table using a built-in pandas method and parse each row with a series of regular expressions to extract the data in a useful format.
dfs = pd.read_html(dataset_location, flavor='bs4')
df = dfs[0].fillna(method='ffill')
def process_row(row):
name_long = row[0]
unit = row[1]
callsign_long = row[2]
freq_long = row[3]
remarks = row[4]
name_processed = process_namestring(name_long)
callsign_processed = process_callsignstring(callsign_long)
freq_processed = process_freqstring(freq_long)
return [
name_processed.get('name'),
name_processed.get('lateral_limits'),
name_processed.get('upper_limit'),
name_processed.get('lower_limit'),
name_processed.get('class_of_airspace'),
name_processed.get('upper_limit_2'),
name_processed.get('lower_limit_2'),
name_processed.get('class_of_airspace_2'),
unit,
callsign_processed.get('callsign'),
callsign_processed.get('language'),
callsign_processed.get('hours'),
freq_processed.get('frequency'),
freq_processed.get('purpose'),
remarks
]
def process_vertical_limit(string):
match = expression_vertical.match(string)
if match is not None:
if match.group('fl') is not None:
return int(match.group('fl_num')) * 100
elif match.group('ft') is not None:
return int(match.group('ft_num'))
elif match.group('sfc') is not None:
return 0
else:
raise Exception(string)
else:
raise Exception(string)
def process_namestring(string):
match = expression_namestring.match(string)
if match is not None:
ret = dict()
ret['original'] = match.group(0)
ret['name'] = match.group('name').strip()
ret['lateral_limits'] = match.group('lateral_limits')
ret['upper_limit'] = process_vertical_limit(match.group('upper_limit'))
ret['lower_limit'] = process_vertical_limit(match.group('lower_limit'))
ret['class_of_airspace'] = match.group('class')
ret['second'] = match.group('second') is not None
if ret['second']: # second upper/lower limit and class
ret['upper_limit_2'] = process_vertical_limit(match.group('upper_limit_2'))
ret['lower_limit_2'] = process_vertical_limit(match.group('lower_limit_2'))
ret['class_of_airspace_2'] = match.group('class_2')
return ret
else:
raise Exception(string)
def process_callsignstring(string):
match = expression_callsignstring.match(string)
if match is not None:
ret = dict()
ret['original'] = match.group(0)
ret['callsign'] = match.group('callsign')
ret['language'] = match.group('language')
ret['hours'] = match.group('hours')
return ret
else:
raise Exception(string)
def process_freqstring(string):
match = expression_freqstring.match(string)
if match is not None:
ret = dict()
ret['original'] = match.group(0)
ret['frequency'] = match.group('frequency')
ret['purpose'] = match.group('purpose')
return ret
else:
raise Exception(string)
df2 = df.apply(process_row, axis=1, result_type='expand')
columns = [
'name',
'lateral_limits',
'upper_limit',
'lower_limit',
'class_of_airspace',
'upper_limit_2',
'lower_limit_2',
'class_of_airspace_2',
'unit',
'callsign',
'language',
'hours',
'frequency',
'purpose',
'remarks'
]
df2.columns = columns
fir_index = (~df2.name.str.contains("FIR") & ~df2.name.str.contains("UIR")).idxmax()
fir = df2.head(fir_index).copy()
fir.head()
| name | lateral_limits | upper_limit | lower_limit | class_of_airspace | upper_limit_2 | lower_limit_2 | class_of_airspace_2 | unit | callsign | language | hours | frequency | purpose | remarks | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | LONDON FIR | 550000N 0050000E -513000N 0020000E -510700N 00... | 24500 | 19500 | C | 19500.0 | 0.0 | G | LONDON CONTROL (SWANWICK) | LONDON CONTROL | English | H24 | 118.480 | None | LONDON CONTROL (SWANWICK):Note 1: The Le Touqu... |
| 1 | LONDON FIR | 550000N 0050000E -513000N 0020000E -510700N 00... | 24500 | 19500 | C | 19500.0 | 0.0 | G | LONDON CONTROL (SWANWICK) | LONDON CONTROL | English | H24 | 118.825 | London TMA outbound radar: See London Terminal... | LONDON CONTROL (SWANWICK):Note 1: The Le Touqu... |
| 2 | LONDON FIR | 550000N 0050000E -513000N 0020000E -510700N 00... | 24500 | 19500 | C | 19500.0 | 0.0 | G | LONDON CONTROL (SWANWICK) | LONDON CONTROL | English | H24 | 119.780 | London TMA outbound radar: See London Terminal... | LONDON CONTROL (SWANWICK):Note 1: The Le Touqu... |
| 3 | LONDON FIR | 550000N 0050000E -513000N 0020000E -510700N 00... | 24500 | 19500 | C | 19500.0 | 0.0 | G | LONDON CONTROL (SWANWICK) | LONDON CONTROL | English | H24 | 120.180 | None | LONDON CONTROL (SWANWICK):Note 1: The Le Touqu... |
| 4 | LONDON FIR | 550000N 0050000E -513000N 0020000E -510700N 00... | 24500 | 19500 | C | 19500.0 | 0.0 | G | LONDON CONTROL (SWANWICK) | LONDON CONTROL | English | H24 | 120.475 | None | LONDON CONTROL (SWANWICK):Note 1: The Le Touqu... |
zones = df2.tail(-fir_index).copy()
zones.drop(['upper_limit_2', 'lower_limit_2', 'class_of_airspace_2'], axis=1, inplace=True)
zones.head()
| name | lateral_limits | upper_limit | lower_limit | class_of_airspace | unit | callsign | language | hours | frequency | purpose | remarks | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 105 | ABERDEEN CTA 1 | 572153N 0015835W -572100N 0015802W -572100N 00... | 11500 | 1500 | D | ABERDEEN/DYCE | ABERDEEN APPROACH | English | 119.055 | DOC 55 NM/25,000 FT. | The Airspace remains notified even though the ... | |
| 106 | ABERDEEN CTA 2 | 571522N 0015428W -570845N 0015019W thence cloc... | 11500 | 1500 | D | ABERDEEN/DYCE | ABERDEEN APPROACH | English | 119.055 | DOC 55 NM/25,000 FT. | The Airspace remains notified even though the ... | |
| 107 | ABERDEEN CTA 3 | 572100N 0023356W -570015N 0025056W -565433N 00... | 11500 | 3000 | D | ABERDEEN/DYCE | ABERDEEN APPROACH | English | 119.055 | DOC 55 NM/25,000 FT. | The Airspace remains notified even though the ... | |
| 108 | BALDER CTA | 590504N 0013916E -581110N 0030955E -575615N 00... | 8500 | 1500 | D | NORWAY ACC | NORWAY CONTROL | English | 0600 - 2030 Mon-Fri (1 hr earlier in summer) | 134.200 | None | Mandatory carriage of ADS-B equipment. |
| 109 | BANBA CTA | 520049N 0060720W -514034N 0060027W -512400N 00... | 66000 | 19500 | C | SHANNON ACC | SHANNON CONTROL | English | H24 | 131.150 | None | ATS within the BANBA CTA is delegated to Shann... |
Extracting Geographical Data¶
We take the text representation of each airspace’s geometry and turn it into a geometry object that we can work with more easily. We then use this to produce a geopandas GeoDataFrame.
Note: we are using buffer(0) to fix self-intersecting polygons. This turns “bow tie” shapes into a MultiPolygon.
TODO: fix curved sections, currently using resolution=1 because they don’t quite work properly
def circle(start, end, centre, clockwise, resolution=10): # start, end, centre tuples (lat,long), clockwise bool
# correct the centre by projecting it onto the perpendicular bisector of start and end (TODO better implementation)
x1, y1 = start
x2, y2 = end
x3, y3 = centre
# edge cases
if y2 == y1:
centre2 = ((x1 + x2) / 2, y3)
elif x2 == x1:
centre2 = (x3, (y1 + y2) / 2)
else:
m = (y2 - y1) / (x2 - x1)
a = (((x1 + x2) / (2 * m)) + ((y1 + y2) / 2) + (m * x3) - y3) / (m + (1 / m))
centre2 = (a, (m * (a - x3)) + y3)
radius = math.sqrt(pow(start[0] - centre2[0], 2) + pow(start[1] - centre2[1], 2))
angle1 = math.atan2(start[1] - centre2[1], start[0] - centre2[0])
angle2 = math.atan2(end[1] - centre2[1], end[0] - centre2[0])
step = (angle2 - angle1) / resolution
if step > 0 and not clockwise:
step = (-1) * ((2 * math.pi) - (angle2 - angle1)) / resolution
if step < 0 and clockwise:
step = ((2 * math.pi) + (angle2 - angle1)) / resolution
ret = list()
#ret.append(start)
for i in range(1, resolution):
angle = angle1 + i * step
lat = centre2[0] + (radius * math.cos(angle))
long = centre2[1] + (radius * math.sin(angle))
ret.append((lat, long))
ret.append(end)
return ret
def strings_to_point(lat, ns, long, ew):
latitude = int(lat) * (1 if ns == 'N' else -1) / 10000
longitude = int(long) * (1 if ew == 'E' else -1) / 10000
return (latitude, longitude)
def lateral_to_geography(lateral_limits):
geography = list()
for match in expression_lateral.finditer(lateral_limits):
groups = match.groupdict()
if groups.get('edge1') is not None:
print("Edge case: {}".format(groups.get('edge1')))
return None
if groups.get('edge2') is not None:
print("Edge case: {}".format(groups.get('edge2')))
return None
if groups.get('point') is not None:
point = strings_to_point(groups.get('point_lat'),
groups.get('point_ns'),
groups.get('point_long'),
groups.get('point_ew'))
geography.append(point)
if groups.get('circle') is not None:
start = geography[-1]
end = strings_to_point(groups.get('circle_lat2'),
groups.get('circle_ns2'),
groups.get('circle_long2'),
groups.get('circle_ew2'))
centre = strings_to_point(groups.get('circle_lat'),
groups.get('circle_ns'),
groups.get('circle_long'),
groups.get('circle_ew'))
clockwise = len(groups.get('circle_anti')) == 0
geography.extend(circle(start, end, centre, clockwise, 50))
#geography.append(end)
#print(groups)
return geography
def geography_to_points(geography):
if geography is None:
return geopandas.points_from_xy([], [])
lats, longs = zip(*geography)
return geopandas.points_from_xy(longs, lats)
def geography_to_airspace(row):
if row.geometry is not None and len(row.geometry) > 0:
poly = row.geometry[0]
else:
poly = Polygon(geopandas.points_from_xy([], []))
extruded_poly = ExtrudedPolygon(poly, row.lower_limit / 100, row.upper_limit / 100)
airspace = Airspace("", elements = [extruded_poly])
return airspace
#geography_lambda = lambda x: MultiPolygon([Polygon(geography_to_points(lateral_to_geography(x)))])
def geography_lambda(limit):
poly = Polygon(geography_to_points(lateral_to_geography(limit))).buffer(0)
if isinstance(poly, Polygon):
return MultiPolygon([poly])
else:
return MultiPolygon(poly)
zones['geometry'] = zones.lateral_limits.apply(geography_lambda)
zones['airspace'] = zones.apply(geography_to_airspace, axis=1)
Edge case: but excluding the Gatwick CTR.
Edge case: but excluding the Gatwick CTR.
Edge case: but excluding the Gatwick CTR.
Edge case: but excluding the Gatwick CTR.
gdf = geopandas.GeoDataFrame(zones, geometry=zones.geometry)
gdf.set_crs(epsg=4326, inplace=True)
gdf.crs
<Geographic 2D CRS: EPSG:4326>
Name: WGS 84
Axis Info [ellipsoidal]:
- Lat[north]: Geodetic latitude (degree)
- Lon[east]: Geodetic longitude (degree)
Area of Use:
- name: World
- bounds: (-180.0, -90.0, 180.0, 90.0)
Datum: World Geodetic System 1984
- Ellipsoid: WGS 84
- Prime Meridian: Greenwich
Visualising Airspaces¶

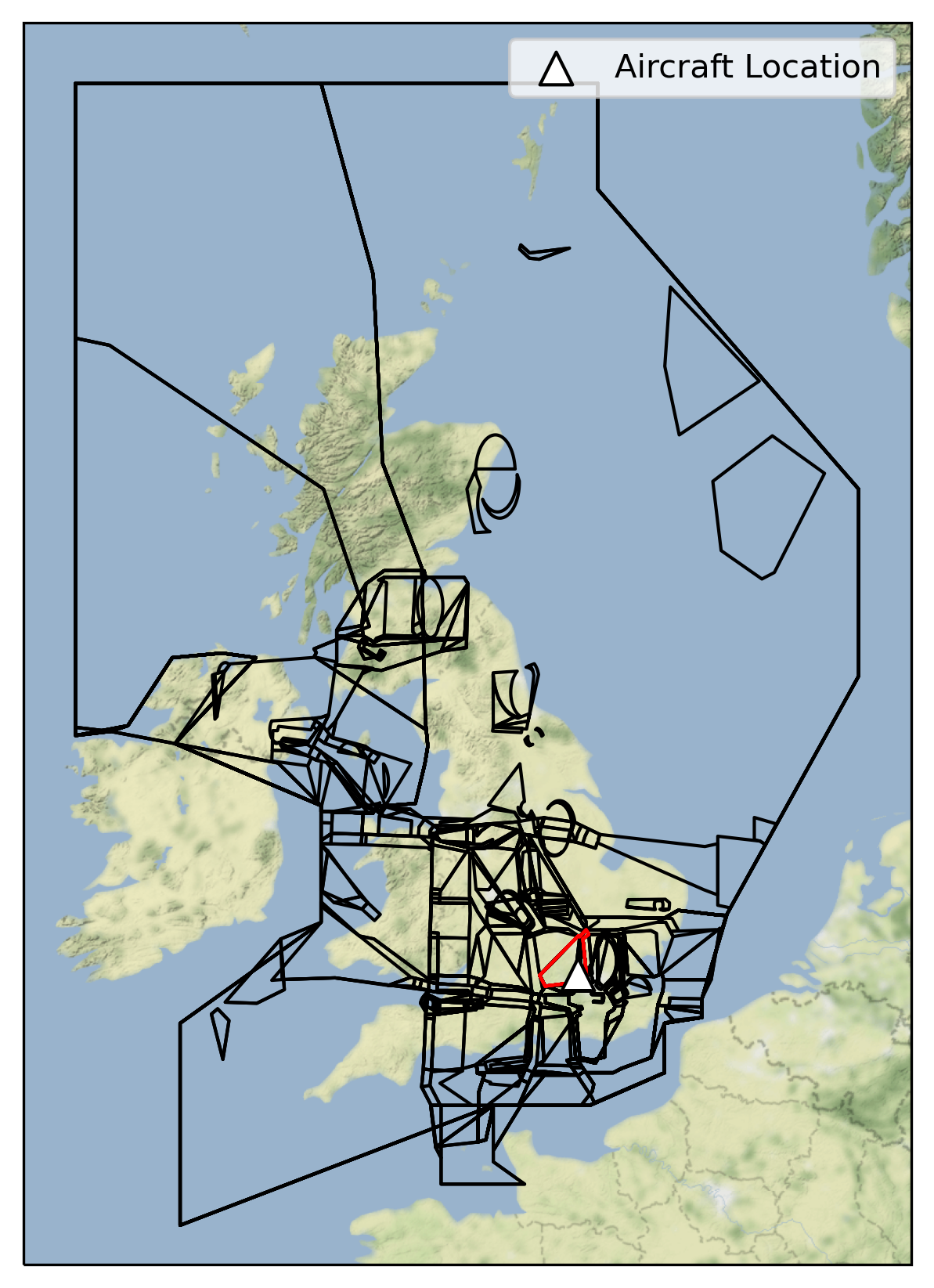

We can now plot the airspaces on a map, and plot the airspaces which intersect a given point.
loc = Point(-0.388092, 51.590865)
v = 10000
gdf_filtered = gdf[(gdf.lower_limit < v) & (gdf.upper_limit > v) & gdf.geometry.contains(loc)]
fig = plt.figure(dpi=300, figsize=(7,7))
imagery = cimgt.Stamen(style="terrain-background")
ax = plt.axes(projection=imagery.crs)
minlon = -11
maxlon = 6
minlat = 48
maxlat = 61.5
ax.set_extent((minlon, maxlon, minlat, maxlat))
ax.add_image(imagery, 6)
ax.add_geometries(gdf.geometry, crs=ccrs.PlateCarree(), facecolor="none", edgecolor="black")
ax.add_geometries(gdf_filtered.geometry, crs=ccrs.PlateCarree(), facecolor="none", edgecolor="red")
ax.scatter(loc.x, loc.y, transform=ccrs.PlateCarree(), marker = "^", edgecolor="black", facecolor="white", s=100, zorder=10, label="Aircraft Location")
ax.legend(loc="upper right").set_zorder(100)
ax.set_aspect('auto')
plt.show()
Export Data¶
We save the data to a file.
from flight_processing import DataConfig
config = DataConfig.known_dataset("uk")
out_location = config.dataset_location
out_location
'/mnt/cold_data/josh/processing/regions_uk_wkt.json'
gdf_out = gdf.copy()
del gdf_out['airspace']
gdf_out['wkt'] = gdf_out.geometry.apply(lambda g: g.wkt)
#del gdf_out['geometry']
gdf_out.to_file(config.dataset_location, driver="GeoJSON")
del gdf_out
ERROR:fiona._env:/mnt/cold_data/josh/processing/regions_uk_wkt.json: No such file or directory
WARNING:fiona._env:driver GeoJSON does not support creation option ENCODING
